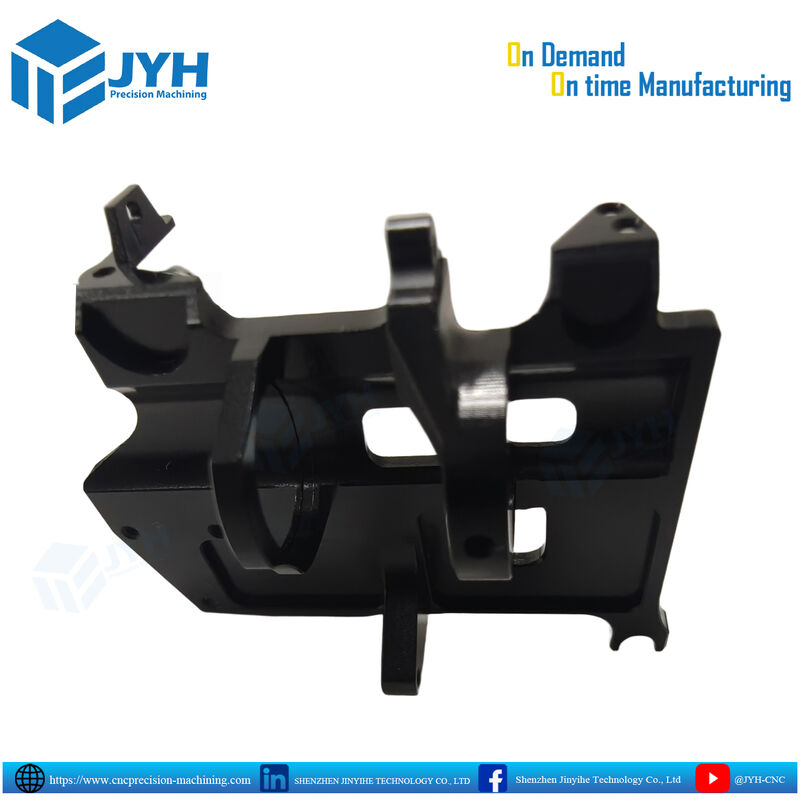

Precision CNC Machined Aluminum Mounting Bracket
High-Strength | Lightweight | Customizable | Industrial-Grade Performance
Product Overview
This Precision CNC Machined Aluminum Bracket is a high-performance structural component designed for applications requiring exceptional strength, dimensional accuracy, and durability. Manufactured using advanced CNC milling and turning processes, this bracket features complex geometries, precision mounting points, and excellent surface finish, ensuring reliable performance in demanding industrial environments.
With over a decade of experience in precision machining and mechanical engineering, this component reflects optimized design-for-manufacturing (DFM) principles, making it suitable for aerospace, automotive, robotics, UAV, and industrial equipment applications.
Key Features & Advantages
- High Precision CNC Machining
Manufactured on multi-axis CNC machines to achieve tight tolerances, excellent flatness, and accurate hole positioning.
- Lightweight Yet Strong Structure
Optimized wall thickness and ribbing design ensure high strength-to-weight ratio without unnecessary material usage.
- Complex Geometry Capability
Internal cavities, mounting bosses, slots, and contoured surfaces are machined with high repeatability.
- Superior Surface Finish
Black anodized or coated finish improves corrosion resistance, wear resistance, and overall aesthetics.
- Excellent Assembly Compatibility
Precisely located holes and mounting surfaces ensure easy integration into larger assemblies.
Material Options
|
Material
|
Properties
|
Typical Applications
|
|
Aluminum 6061-T6
|
Lightweight, corrosion-resistant, good machinability
|
UAV frames, automation equipment
|
|
Aluminum 7075-T6
|
High strength, fatigue-resistant
|
Aerospace & high-load components
|
|
Magnesium Alloy (Optional)
|
Ultra-lightweight, EMI shielding
|
Aerospace, defense
|
|
Stainless Steel (Optional)
|
High strength, corrosion resistance
|
Heavy-duty industrial use
|
Material selection can be customized based on strength, weight, and operating environment requirements.
Manufacturing Process
|
Process Step
|
Description
|
|
CNC Milling
|
Multi-axis machining for complex profiles and pockets
|
|
CNC Turning
|
Precision cylindrical features (if required)
|
|
Deburring
|
Manual & automated edge finishing
|
|
Surface Treatment
|
Anodizing / Black coating / Powder coating
|
|
Quality Inspection
|
CMM inspection & visual checks
|
Technical Specifications
|
Parameter
|
Specification
|
|
Machining Method
|
CNC Milling / Multi-axis CNC
|
|
Tolerance
|
±0.01 mm (custom tighter tolerance available)
|
|
Surface Roughness
|
Ra 0.8–3.2 μm
|
|
Finish Options
|
Black anodized, clear anodized, powder coated
|
|
Production Volume
|
Prototyping to mass production
|
|
Drawing Support
|
2D (PDF/DWG) & 3D (STEP/IGES)
|
Applications
- Robotics & Automation Systems
- Automotive Mounting Structures
- Aerospace Sub-Assemblies
- Industrial Machinery Frames
- Electronic Enclosures & Fixtures
Why Choose JYH Precision Machining?
✔ 10+ years of CNC machining expertise
✔ In-house quality control & inspection
✔ Strong DFM and cost-optimization support
✔ Fast turnaround for prototypes & production
✔ ISO-compliant manufacturing processes
✔ One-stop solution: machining + surface finishing
Customization & Engineering Support
We provide full customization based on your drawings or samples:
- Design optimization (DFM feedback)
- Material and finish recommendations
- Low-volume prototyping
- Cost reduction suggestions for mass production
Our engineering team works closely with customers to ensure functionality, reliability, and manufacturability are achieved without compromise.
Packaging & Delivery
- Individual protective packaging to avoid surface damage
- Foam + carton or custom packaging available
- Global shipping support (EXW, FOB, DDP options available)
