Name: CNC Machined Handheld Housing with ±0.01mm to ±0.05mm Tolerance and Anodizing Surface Finish via 4-axis / 5-axis Machining
Brand: Shenzhen Jinyihe Technology Co., Ltd.
SKU: Volledige OEM/ODM-ondersteuning
Price: 99.15 USD
Availability: InStock

Thuis > producten > Mechanische montage >

CNC Machined Handheld Housing with ±0.01mm to ±0.05mm Tolerance and Anodizing Surface Finish via 4-axis / 5-axis Machining

Plaats van herkomst:

China

Merknaam:

JYH

Certificering:

ISO 9001,IATF1969

Modelnummer:

Volledige OEM/ODM-ondersteuning

Document:

JYH-Precision-Machining.pdf

Neem contact met ons op

Vraag een offerte

CNC Machined Handheld Housing with ±0.01mm to ±0.05mm Tolerance and Anodizing Surface Finish via 4-axis / 5-axis Machining

Productgegevens

Producttype:

CNC-gefreesde handheld behuizing/behuizing

Bewerkingsproces:

CNC frezen / CNC draaien / 4-assig / 5-assig bewerken

Materiaalopties:

Aluminium 6061 / 7075, roestvrij staal, magnesium, ABS, PC

Tolerantievermogen:

±0,01 mm tot ±0,05 mm (gebaseerd op structuur)

Oppervlakteruwheid:

Ra 0,8–3,2 (aanpasbaar)

Oppervlakteafwerking:

Anodiseren, Hard anodiseren, Poedercoaten, Schilderen, Zandstralen

Productievolume:

Prototype, klein volume, massaproductie

Maatwerk:

Logograveren, seriemarkering, montageklare bewerking

Inspectie:

Volledig QC-rapport beschikbaar (CMM-rapport ondersteund)

Bestandsformaat geaccepteerd:

STAP, IGES, STL, DWG, PDF

Betaling en verzendvoorwaarden

Min. bestelaantal

Prijs

Competitive

Verpakking Details

Aangepaste verpakking

Levertijd

3-5 dagen

Betalingscondities

Bankoverdracht

Levering vermogen

Van prototype naar hoogvolume

Gerelateerde producten

Neem contact met ons op

Contact opnemen

Productbeschrijving

CNC Machined Handheld Device Housing

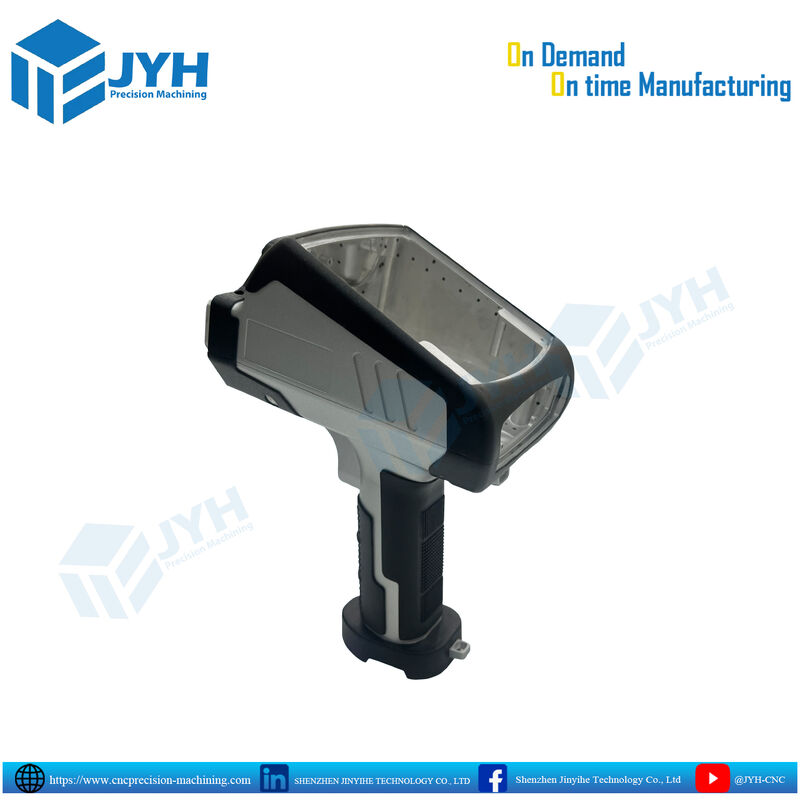

At JYH Precision Machining, we manufacture high-quality CNC machined handheld device housings designed for demanding industrial environments. The product shown is a precision-machined enclosure body commonly used for handheld scanners, measuring devices, inspection tools, barcode readers, portable controllers, and smart industrial terminals.

This type of housing is engineered to provide excellent structural strength, accurate assembly positioning, and premium surface appearance, while ensuring long-term durability under vibration, repeated handling, and outdoor/warehouse working conditions.

With over 10 years of mechanical engineering and precision manufacturing experience, we understand the most critical requirements for handheld housings: tight tolerance control, clean cosmetic finish, stable part-to-part consistency, and perfect fit for internal electronics.

Product Overview

This product is a custom CNC machined handheld housing, combining a robust upper enclosure structure with a grip handle design. The housing provides:

Strong protection for internal PCB, sensors, display modules, and battery units
Stable mounting features for screws, inserts, and sealing components
High-end appearance with anodizing or painting finishes
Reliable dimensional stability for mass production assembly

We support complete manufacturing from prototype to low-volume and bulk production.

Key Features

High Precision CNC Machining

The enclosure is produced using advanced 3-axis / 4-axis / 5-axis CNC machining, ensuring complex geometry and accurate internal cavities.

Consistent dimensional control
Sharp edge management and deburring
Stable tolerance performance across batches

Lightweight but Strong Structure

Handheld products require a perfect balance between lightweight design and high impact resistance. We use aluminum alloys or engineering plastics depending on application requirements.

Excellent Surface Finish

The external surface can be treated for premium cosmetic quality, including:

Anodizing (black, silver, blue, custom colors)
Powder coating
Spray painting
Sandblasting + anodizing
Laser engraving for logos and serial numbers

Assembly-Ready Design

We machine accurate assembly features including:

Screw holes
Positioning slots
Battery compartment interfaces
Display mounting surfaces
USB / charging port cutouts
Button openings and sensor windows

This ensures the housing can be installed directly into your assembly line with minimal rework.

Common Applications

This CNC machined handheld housing is widely used in:

Barcode scanners / RFID handheld terminals
Industrial inspection and measurement tools
Portable medical diagnostic devices
Handheld laser marking controllers
Warehouse logistics terminals
Smart manufacturing control devices
Portable test equipment enclosures
Outdoor handheld communication devices

Material Options

We provide a wide range of materials depending on your product requirements.

Recommended Materials:

Aluminum 6061-T6 (lightweight, excellent machinability)
Aluminum 7075-T6 (high strength, aerospace-grade)
Stainless Steel 304 / 316 (corrosion resistance)
Magnesium Alloy AZ31 / AZ91 (ultra lightweight, premium performance)
ABS / PC / Nylon (PA66) (injection molding option for mass production)

Surface Treatment Options

A handheld enclosure is both a mechanical part and a visual product. JYH supports full finishing solutions:

Surface Treatment	Benefits	Typical Use
Anodizing	Corrosion resistance, premium look	Industrial handheld scanners
Hard Anodizing	High wear resistance	Outdoor and rugged tools
Sandblasting	Matte texture, uniform finish	Consumer & industrial products
Powder Coating	Thick protection layer, many colors	Heavy-duty housings
Spray Painting	Smooth cosmetic finish	Commercial handheld devices
Laser Marking	Permanent logo/serial number	Branding and traceability
Silk Printing	Clear text/icons	Button labeling and panels

Manufacturing Process

To ensure consistent quality, our production process includes:

1. Engineering Review (DFM Support)

Before machining, our engineers check:

Wall thickness feasibility
Tool accessibility
Assembly structure optimization
Tolerance stack-up risks

2. Precision CNC Milling & Turning

Using high-speed CNC machines, we produce:

Internal cavities
Mounting structures
External contour profiles
Threaded holes and counterbores

3. Deburring & Edge Finishing

We apply controlled edge breaking and chamfering to avoid sharp edges and improve user comfort.

4. Surface Finishing

Depending on design needs, we apply anodizing, coating, or painting with stable color consistency.

5. Quality Inspection

We inspect critical dimensions using:

CMM measurement
Height gauge
Pin gauges
Calipers/micrometers
Visual inspection for cosmetic requirements

Product Specifications

Final specs depend on your drawing and project requirements.

Item	Specification
Product Type	CNC Machined Handheld Housing / Enclosure
Machining Process	CNC Milling / CNC Turning / 4-axis / 5-axis machining
Material Options	Aluminum 6061 / 7075, Stainless Steel, Magnesium, ABS, PC
Tolerance Capability	±0.01mm to ±0.05mm (based on structure)
Surface Roughness	Ra 0.8-3.2 (customizable)
Surface Finish	Anodizing, Hard anodizing, Powder coating, Painting, Sandblasting
Production Volume	Prototype, Low-volume, Mass production
Customization	Logo engraving, serial marking, assembly-ready machining
Inspection	Full QC report available (CMM report supported)
File Format Accepted	STEP, IGES, STL, DWG, PDF

Why CNC Machining is Ideal for Handheld Device Housings

Handheld device housings often require complex shapes, tight tolerance, and durable materials. CNC machining provides key advantages:

Stronger than Injection Molded Prototypes

CNC machined aluminum housings provide real functional testing for:

Drop resistance
Heat dissipation
Internal PCB installation
Final assembly fit

Faster Product Development

For R&D projects, CNC machining allows quick modifications without expensive molds.

Best for Low-Volume and High-End Devices

Many industrial and medical handheld products require small to medium production volumes. CNC machining provides flexibility and premium appearance.

Manufacturing Method Comparison

Method	Best For	Advantages	Limitations
CNC Machining	Prototypes & low-volume production	High precision, fast design changes, premium quality	Higher cost per part for very large quantities
Die Casting	Medium to high volume metal housings	Good consistency, lower unit cost in bulk	High mold cost, longer lead time
Injection Molding	High volume plastic housings	Very low unit cost for mass production	Mold investment required, less structural strength than metal
